Luqeeg Compact Wind Speed Wind Direction Temperature Humidity Air Pressure Weather Monitoring Sensor for Meteorology, and Forestry with Cable

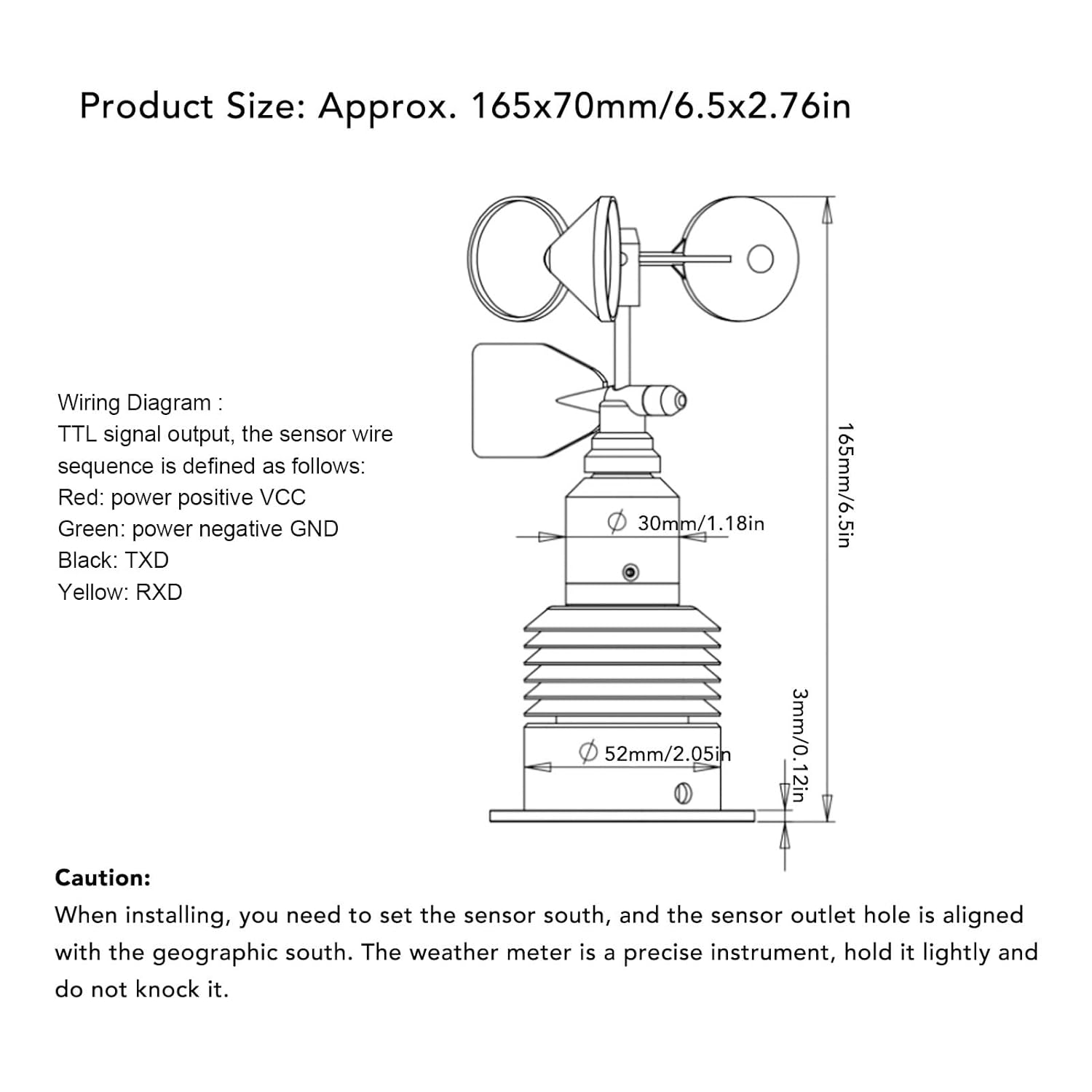

Specification: Item Type: Wired Weather Meter Product Size: Approx. 165x70mm / 6.5x2.8in Gross Weight: 457g/16.1oz Material: ABS, Aluminum Alloy Supply Voltage: DC5V Communication Type: TTL (for Modbus RTU) Cable Length: 2 Meters Operating Environment: 0‑100%RH, ‑40℃ to +60℃ Protecting Grade: IP64 Built in Sensors: Wind Speed, Wind Direction, Temperature, Humidity, Air Pressure Widely Used: Wind Direction Measurement in Greenhouse, Environmental Protecting, Ship, Wharf, Aquaculture, Advertisement Gate, Meteorology, Ocean, Environment, Airport, Harbor, Laboratory, Industry, ​ and Transportation Environment. Wind Speed: 0 to 45m/s range, start wind speed ≤0.8m/s, ±(0.5+0.02V)m/s accuracy, 0.1m/s resolution, 40mW power consumption Wind Direction: 0 to 359° range, ±3° accuracy, 1° resolution, 40mW power consumption Atmospheric Temperature: -40 to 80°C range, ±0.3°C accuracy, 0.1°C resolution, 1mW power consumption Atmospheric Humidity: 0 to 100%RH range, ±5%RH accuracy, 0.1%RH resolution, 1mW power consumption Atmospheric Pressure: 300 to 1100hPa range, ±0.5 hPa (25°C) accuracy, 0.1 hPa resolution, 0.1mW power consumption Sensor Total Power Consumption: Wiring Diagram: TTL signal output, the sensor wire sequence is defined as follows: Red: power VCC Green: power negative GND Black: TXD Yellow: RXD Note: Make sure the wiring is correct before sending power. How to Use: Pairing according to the appropriate communicating type TTL (for Modbus RTU) can be used. PackageList: 1 x Wired Weather Meter Notice: 1. Please check whether the package is intact, and check whether the product model is consistent with the selection; 2. Do not connect the wires with electricity, check the wiring is correct before powering on; 3. The sensor is a precise device, the user in the use of the user do

• [Small yet Powerful] The compact and highly integrated weather meter is designed to be smaller but equally powerful compared to traditional , for monitoring wind speed, wind direction, temperature, humidity, and air pressure.
• [User-friendly Design] Compact, lightweight, and easy to use, the weather meter is an essential tool for those in need of accurate weather data for optimal decision-making in various settings.
• [Versatile Applications] Tested in harsh conditions for temperature, and salt spray resistance, making it suitable for a wide range of applications including meteorology, forestry, and more.
• [Ideal for Wind Monitoring] For wind monitoring in various industries like meteorology, forestry, power plants, chemical factories, ports, railways, and highways, enabling quick and appropriate response measures.
• [Accurate Data Readings] Utilizes efficient filtering algorithms and special compensation technology for rain and fog weather, ensuring stable and consistent data readings in any environment.
