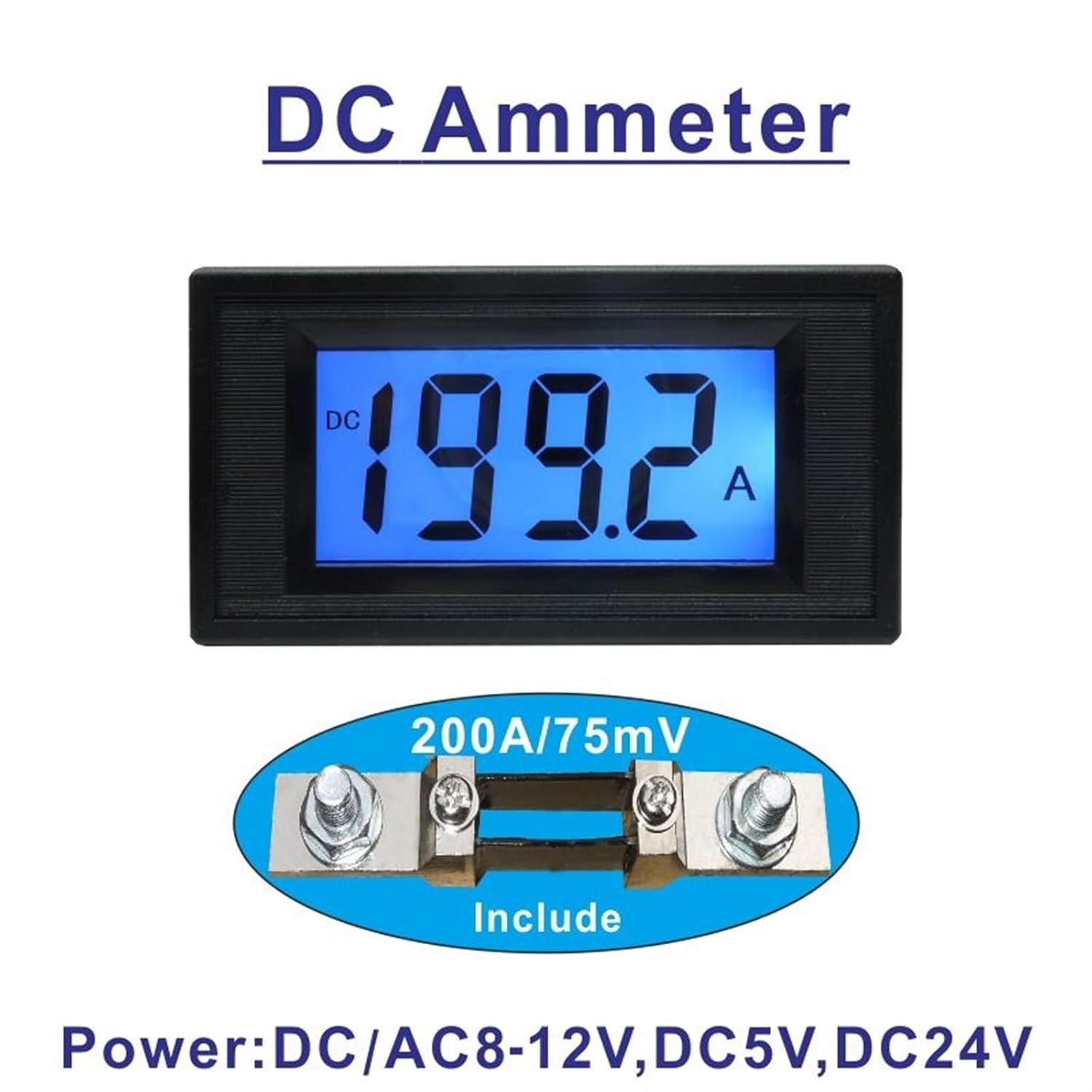

Current Meter LCD Digital Ammeter DC 200A Include Shunt 200A/75mV Ampere Panel Meter Supply Voltage DC 5V 24V DC AC 8-12V(Power DC or AC 8-12V)
4.5 (91 items)
Limited Time Sale$29.76 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 213684356 | Release Date | 2026/04/12 | List Price | $19.84 | Model Number | 213684356 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

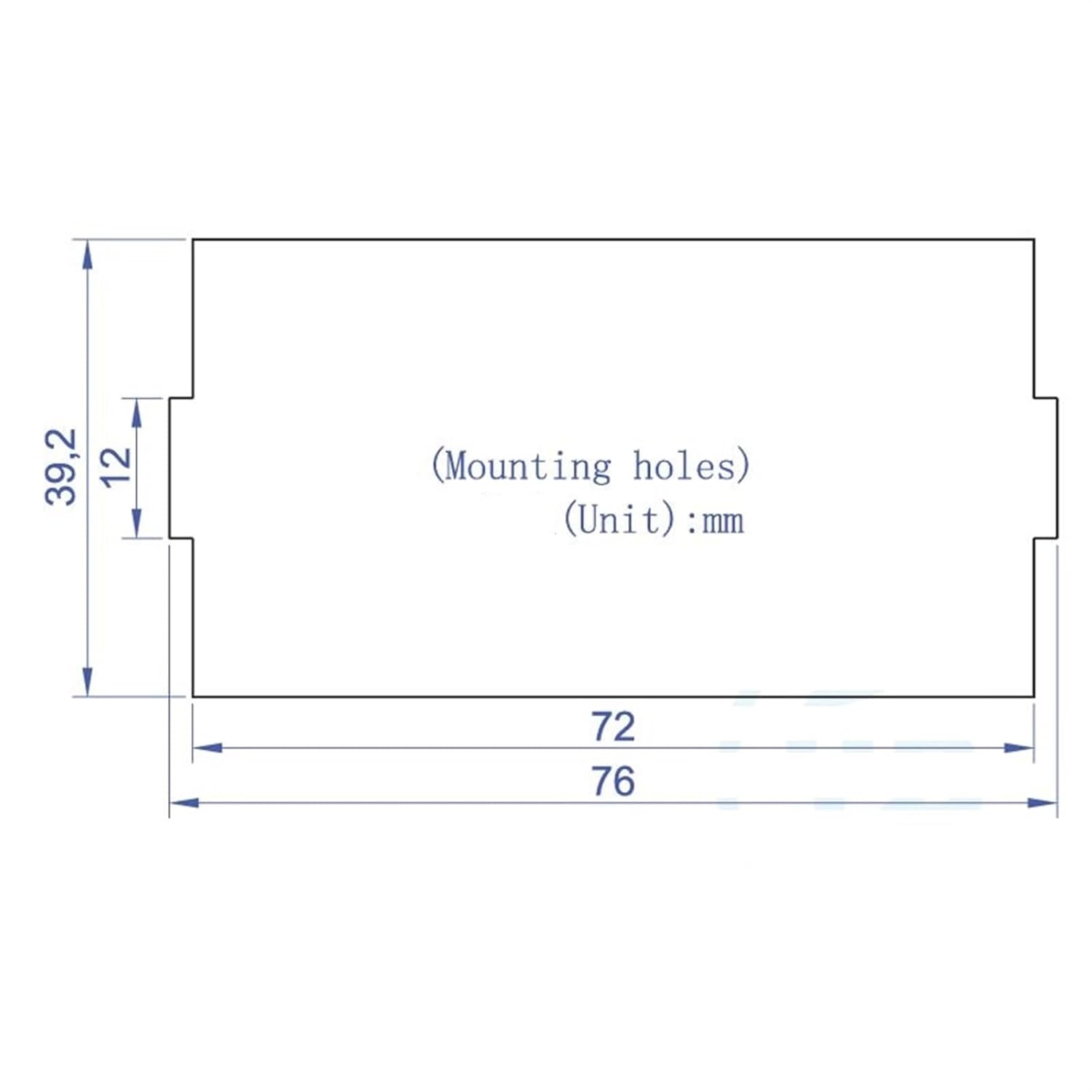

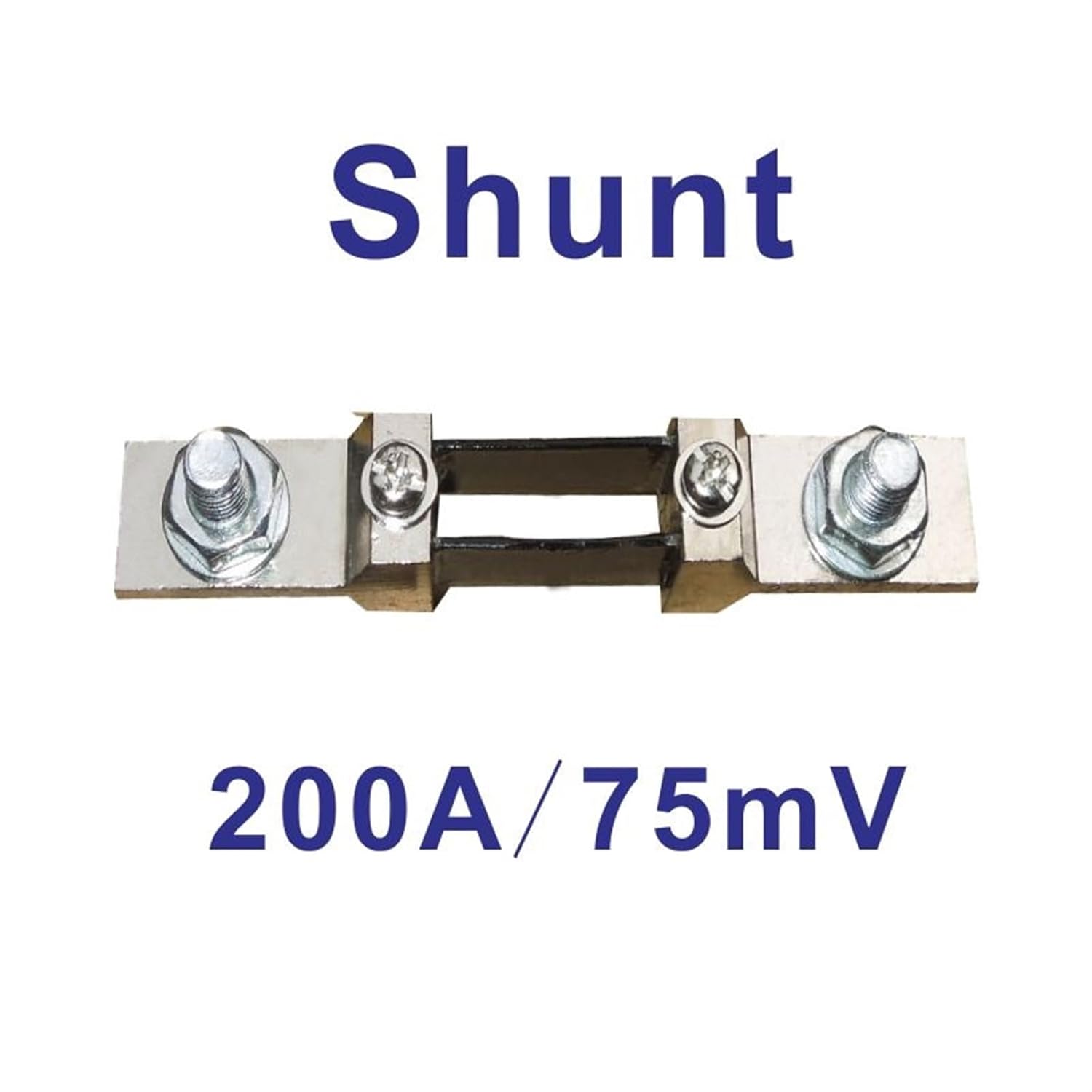

AmmetersAttention:1. Below 10A: all direct measurements, built-in sampling resistance, no external shunt or sampling resistance2. DC***/ 75mV: not include a shunt. It is necessary to take ashunt of 75mV to work, even if 0.1 A. Or it will be burnt.3,This meter is common ground, namely, the "IN -" of the test terminal is connected with the "negative pole" of the power supply side, so the ammeter can only be connectedbetweenload and negative power supply, and it is recommended to use a separate power supply(ie: independent power supply).Technical Parameters:Power supply:DC5V,24V,DC/AC8-12V selectable<;25mATest current:DC200ADimension:79*43*25mmMounting hole:76*39.5mmDisplay mode: LCD with blue backlightMeasurement accuracy: 0.5% (± 2 digits) Measurement rate: 2 times/S Specification:Package Include:1 piece* LCD Digital DC CurrentMeter + Shunt 200A/75mVSuitable for "more than10A or 10A", must need a shunt:Working conditions:Operating temperature: -10 ~ + 50 Working humidity: 10 ~ 80% (no condensation)Working pressure: 80 ~ 106kPaSun exposure: no direct exposure
- Ammeters
- Current Meter LCD Digital Ammeter DC 200A Include Shunt 200A/75mV Ampere Panel Meter Supply Voltage DC 5V 24V DC AC 8-12V
| Color | One Color |
|---|---|
| Model | MVIVDUY |
| Brand Name | MVIVDUY |
| Unit Count | 1.0 Count |
| Item Weight | 50 Grams |
| Manufacturer | MVIVDUY |
